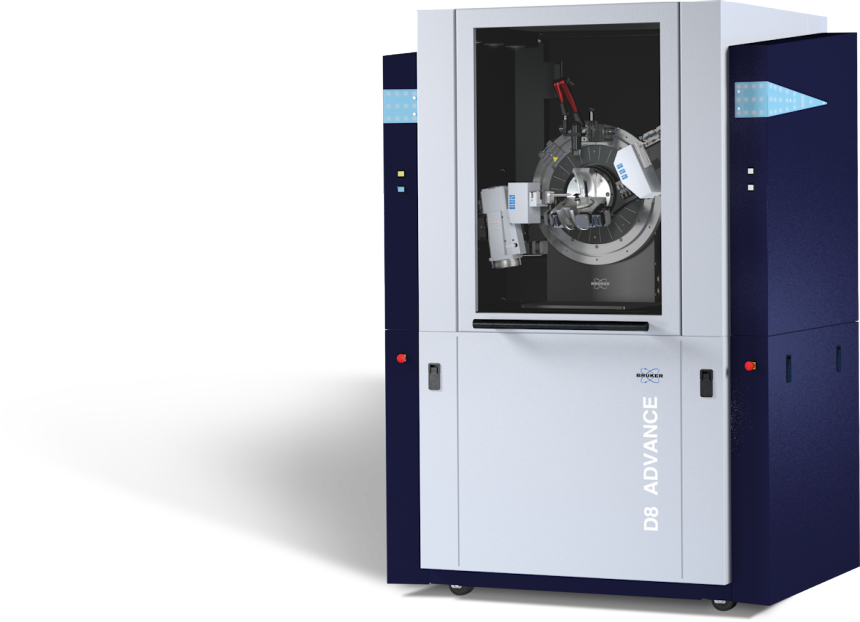

| ECO |
Minimum cost of ownership
Plug’n Analyze: No special needs concerning lab infrastructure
No external water cooling required
1kW X-ray source power |
Only a simple domestic wall socket is required (single phase power). Thus, the installation and positioning of the unit is easy and flexible
The smallest ecological footprint of any floorstanding XRD instrument
Potentially saves up to 1.700 m³ tap water per year
About 50% less consumption of electrical energy |
| TRIO and TWIN optics |
Software push-button switch between:
Motorized Divergence Slit (Bragg-Brentano)
High Intensity Ka1,2 Parallel Beam
High Resolution Ka1 Parallel Beam
Patents: US10429326, US6665372, US7983389 |
Fully automatic, motorized switching between up to 6 different beam geometries without any manual user intervention
Perfectly suited for all sample types including powders, bulk materials, fibers, sheets and thin-films (amorphous, polycrystalline and epitaxial) |
| Dynamic Beam Optimization |
Dynamic synchronization of:
motorized divergence slits
motorized anti-scatter screen
variable active detector window
2Theta Angular range: 150 |
Data virtually free of air, instrument, and sample support scattering
Significantly enhanced lower limits of detection enabling quantification for minor crystalline and amorphous phases
Unparalleled performance at low 2Theta angles enabling accurate investigations of clays, pharmaceuticals, zeolites, porous framework materials and more |
| LYNXEYE XE-T |
Energy Resolution: < 380 eV @ 8 KeV
Detection Modes: 0D,1D, 2D
Wavelengths: Cr, Co, Cu, Mo and Ag
Patents: EP1647840, EP1510811, US20200033275 |
No need for Kß filters and secondary monochromators
100% filtering of Fe-fluorescense with Cu radiation
Up to 450 times faster than conventional detector systems
BRAGG2D: Collect 2D data with a divergent primary line beam
Unique detector warranty: No defective channels at delivery time |
| EIGER2 R |
The latest generation multi-mode (0D/1D/2D) detector based on the Hybrid Photon Counting technology, developed by Dectris Ltd. |
Seamless integration of 0D, 1D and 2D detection in step, continuous and advanced scanning modes
Ergonomic, alignment-free detector rotation to optimize γ or 2Θ angular coverage
Panoramic, tool-free diffracted beam optics using the complete detector field of view
Continuously variable detector positioning to balance angular coverage and resolution |
| TWIST.TUBE |
Easy, fast, and alignment-free switch between line and point focus applications |
No disconnecting of electric cables or water hoses or unmounting of tubes
DAVINCI.DESIGN: Fully automatic detection and configuration of the focus orientation |
| Sample Changers |
FLIPSTICK: 9 Samples
AUTOCHANGER: 90 samples |
Operation in reflection AND transmission geometries |
| D8 Goniometer |
Two-circle goniometer with independent stepper motors and optical encoders |
Unparalleled accuracy and precision as manifested by Bruker's unique alignment guarantee
Absolutely maintenance free drive mechanism / gearings with lifetime lubrication |
| Non-ambient |
Temperature: Ranging from ~85K up to ~1800K
Pressure: 10-⁴ mbar up to 1 bar
Humidity: 5% to 95% RH |
Investigations under ambient and non-ambient conditions
Easily exchanged stages with DIFFRAC.DAVINCI |
