| Catalog Number / Type |

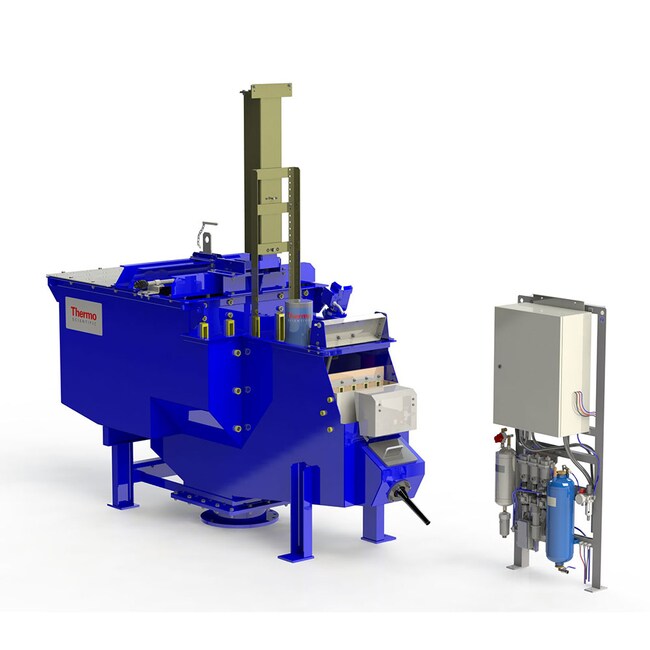

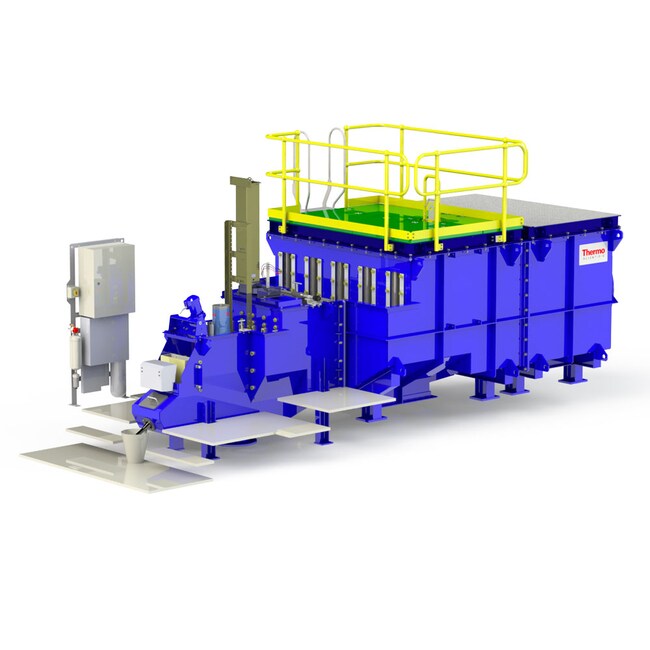

ANSTAT330 ‒ AnStat-330 Online Sampling & Elemental Analysis Station |
Thermo Fisher Scientific slurry analyzer + sampler solution |
| Detector Type / Cooling |
Advanced energy dispersive X-ray detector; Peltier cooling; no liquid nitrogen required |
Reduced maintenance for slurry XRF analysis |
| Analysis Update Time |
Typically 1 minute |
Real-time process control |
| Sample Stream / Sampling Design |
Single dedicated slurry stream with multi-stage proportional sampling, final cross-cut sampler for metallurgical accounting |
Representative composite sampling + reduced cross-contamination |
| Flow Handling Capacity |
Handles slurry flows from ~4 to 36,000 m³/h depending on configuration |
Scalable for small to large mineral processing plants |
| Air / Instrument-quality Air |
Clean, dry to <0.1 µm; dew point < 2°C; nominal pressure ~700 kPa (min 550 to max 1,000) |
For stable operation of probe & analyzer |
| Power & Electrical Requirement |
Three-phase AC 380-600 V ±6 %, 48-62 Hz; approx. 800 W (including stirrer) |
Reliable power for slurry sampling & XRF probe |
| Operating Temperature (Ambient & Process) |
Ambient: −10°C to +55°C; Process Fluid / Slurry: 0°C to +45°C |
Industrial slurry conditions |
| Certifications / Protection Rating |
IP66 enclosure; CE, CSA, FCC Part 15B; ISO-9001 manufacture |
Meets safety & quality standards |
