| Analyzer Architecture |

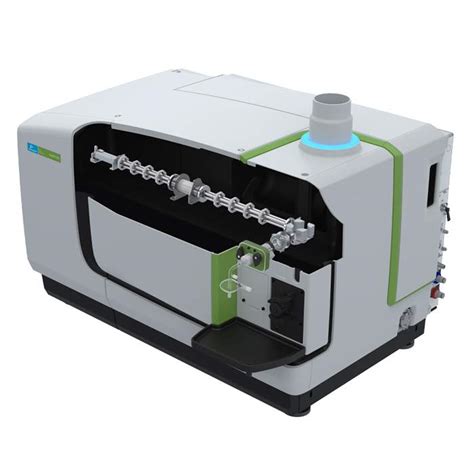

Four-Quadrupole (Q0 Ion Deflector, Q1 Transmission Analyzer, Q2 Universal Cell, Q3 Transmission Analyzer) : from catalog :contentReference[oaicite:0]{index=0} |
Precision interference removal, < 0.7 amu resolution in full-size quadrupoles :contentReference[oaicite:1]{index=1} |
| Detector / Dynamic Linear Range |
< 0.1 cps to > 10⁹ cps; >10 orders magnitude; up to ~12 orders with EDR option :contentReference[oaicite:2]{index=2} |
Handles ultra-trace and higher concentration samples in single scans :contentReference[oaicite:3]{index=3} |
| Abundance Sensitivity |
≈ 10⁻⁸ in Single Quad mode; ≈ 10⁻¹⁰ in MS/MS mode (measured at ²³⁸U) :contentReference[oaicite:4]{index=4} |
High mass sensitivity for heavy elements and precise background discrimination :contentReference[oaicite:5]{index=5} |
| Sample Matrices / Matrix Tolerance |
Supports high TDS up to ~35%; AMS with up to 200× online dilution :contentReference[oaicite:6]{index=6} |
Reduces sample prep; works with aqueous, organic, hot/cold plasmas :contentReference[oaicite:7]{index=7} |
| Plasma / RF Source |
LumiCoil™ RF coil; solid-state 34 MHz RF generator; no water cooling needed :contentReference[oaicite:8]{index=8} |
Fast power matching; lower operating cost :contentReference[oaicite:9]{index=9} |
| Transient Data Acquisition Speed |
> 3,000 points/second max; up to 5000 amu/sec scan speed :contentReference[oaicite:10]{index=10} |
Good for fast scanning and complex sample runs :contentReference[oaicite:11]{index=11} |
| Safety / Regulatory Compliance |
Designed to meet SEMI S2 & S8 standards (optional upgrade) :contentReference[oaicite:12]{index=12} |
Useful for semiconductor industry labs :contentReference[oaicite:13]{index=13} |
